Description

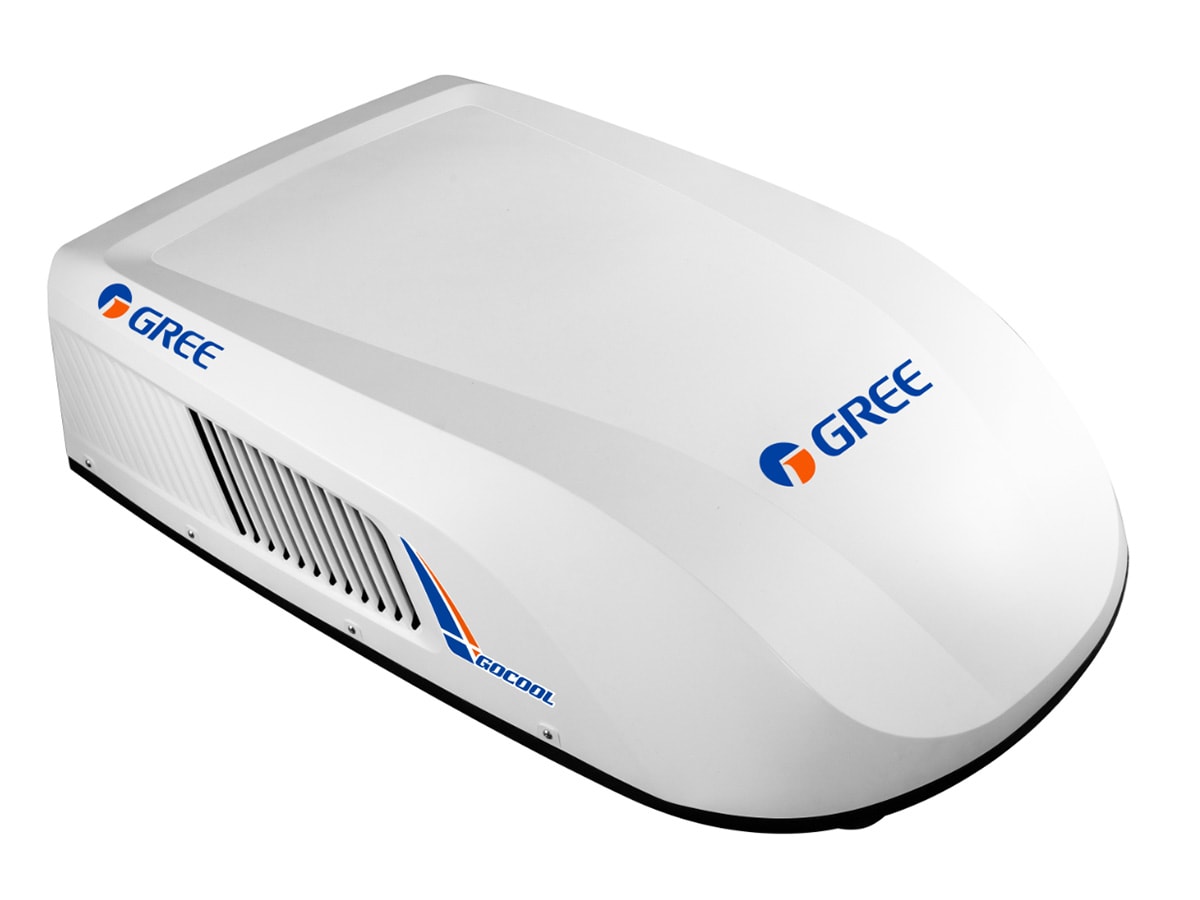

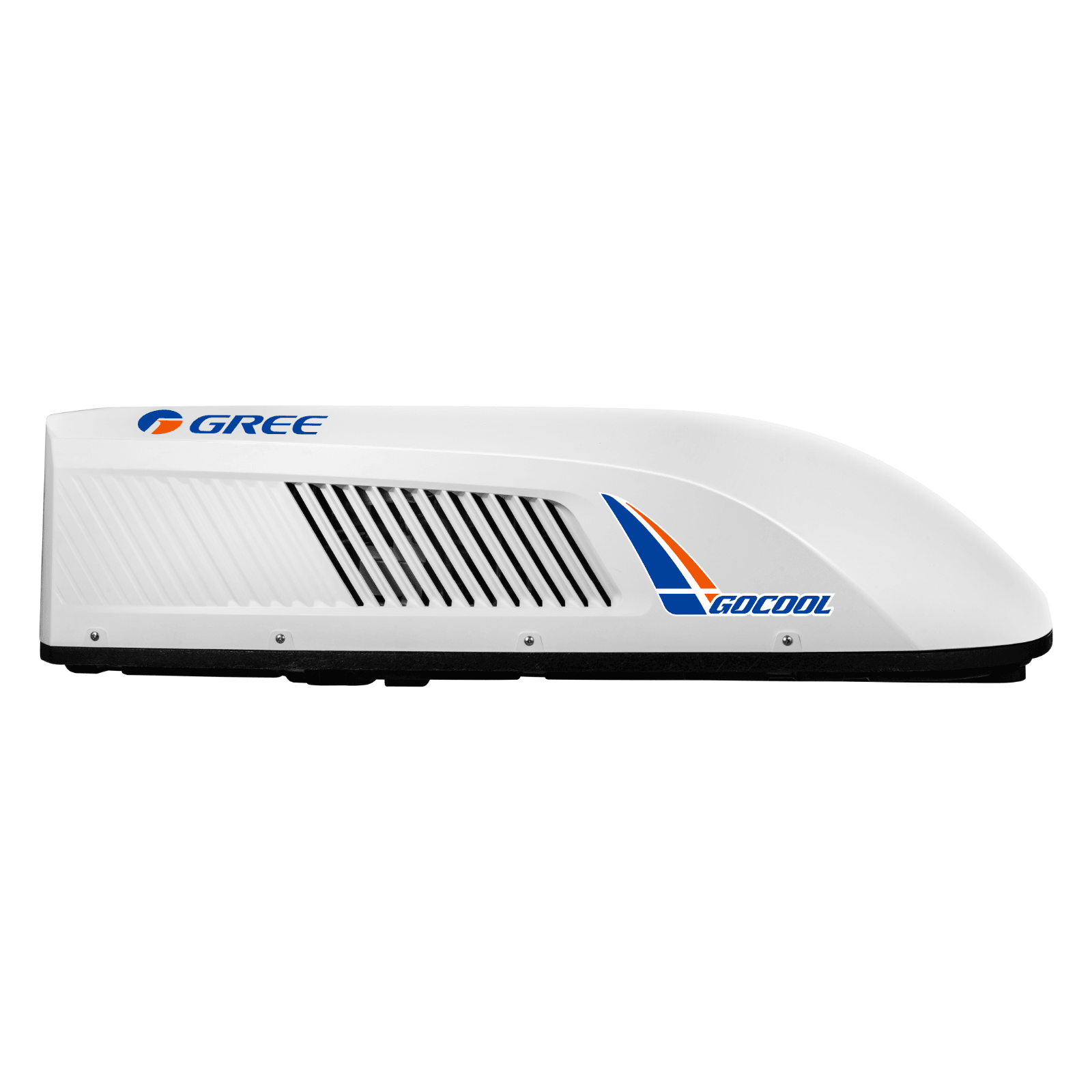

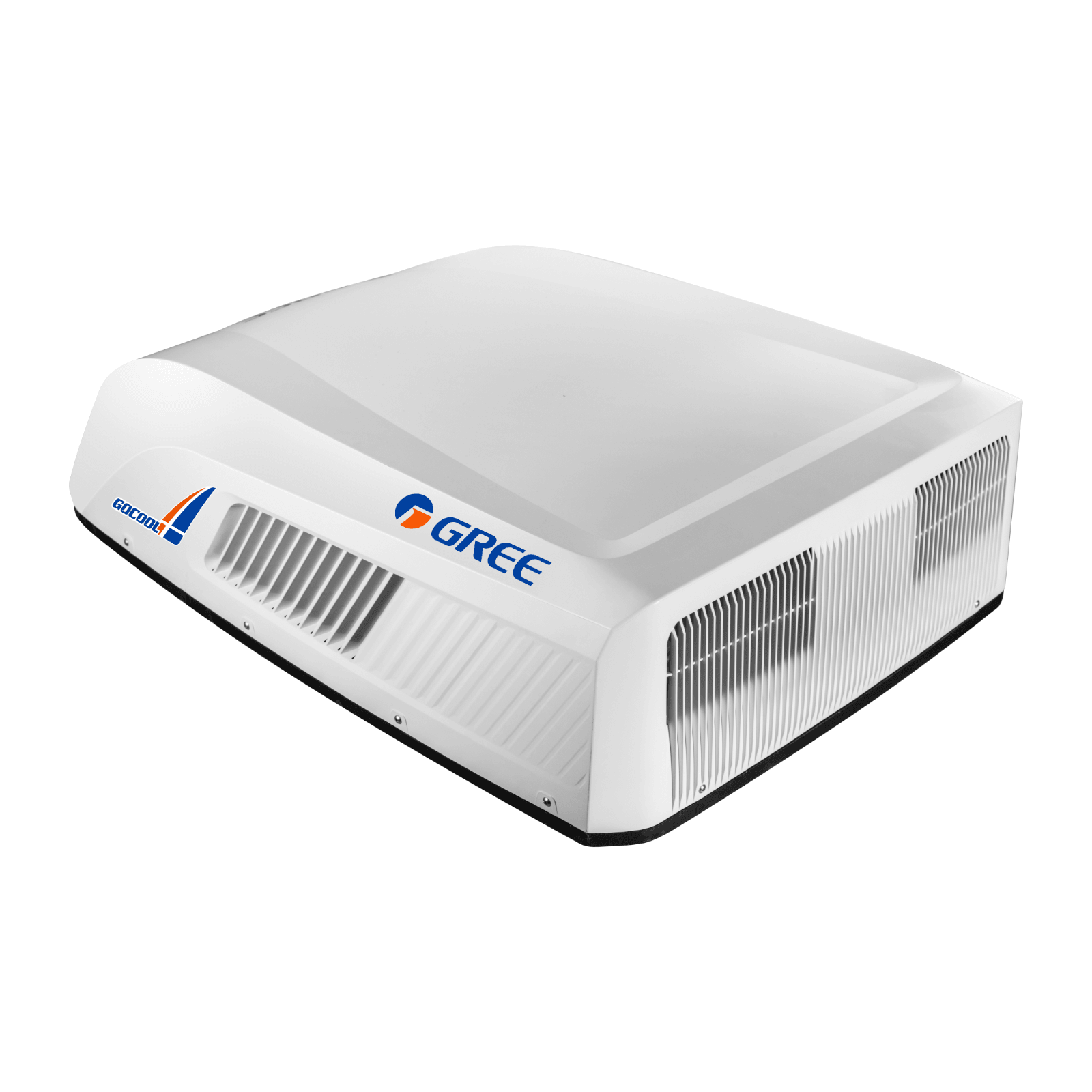

GREE GoCool Plus Inverter Rooftop Air Conditioner for Motorhomes – Featuring Twin-Rotary Technology
Twin-Rotary Inverter Technology – Your Advantage
The advanced twin-rotary inverter compressor continuously adjusts its output to match actual cooling and heating demands.
Compared with conventional single-rotary inverter systems, this technology offers significant advantages for mobile applications:
– Stepless Capacity Control – Advanced inverter technology enables smooth and precise performance adjustments.
– Quiet, Low-Vibration Operation – The twin-rotary compressor ensures exceptionally smooth and stable operation with minimal vibration.
– Improved Part-Load Efficiency – More efficient operation under partial-load conditions compared with conventional single-rotary systems.
– Comfortably Quiet Performance – Reduced operating noise makes it ideal for nighttime use in motorhomes.
The result is a consistently comfortable indoor climate with optimized energy consumption.
Features & Functions
– Operating Modes: Auto, Cooling, Heating, Dehumidification, Fan
– Turbo Mode
– Sleep Mode
– Multiple Fan Speeds
– Efficient Two-Way Air Distribution

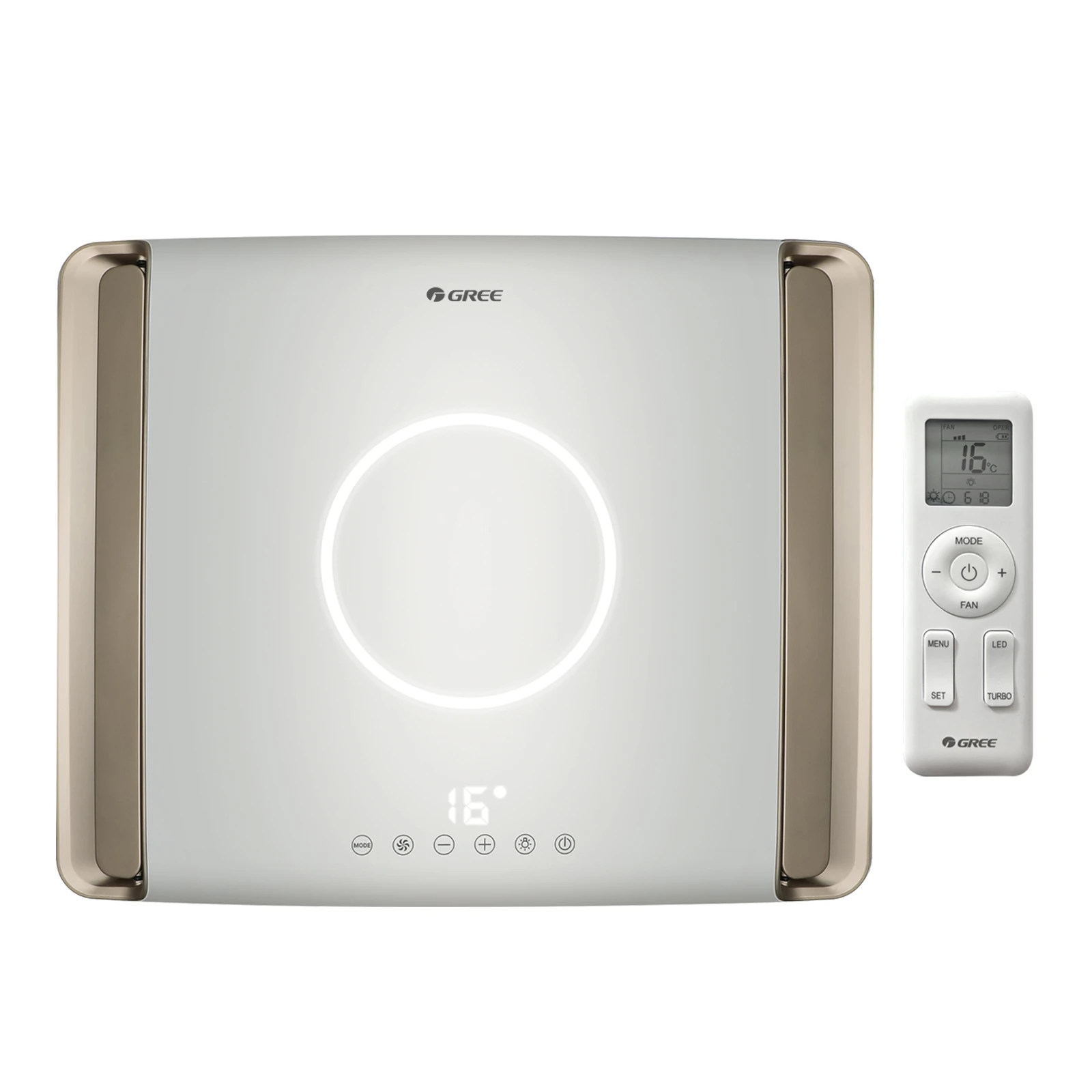

– Integrated LED Ceiling Light
– Control via Touch Panel or Remote Control
– ON/OFF Timer
– Temperature Display
– Filter Replacement Indicator
– Self-Diagnosis Function
– Automatic Defrost Function
– Manual Defrost Function
– Standby Mode
– Suitable for Vehicles up to Approximately 8 m in Length
Technical Details:
| Model | GRH09DB-K6DNA1C | GRH12DB-K6DNA1C |
|---|---|---|
| Cooling Capacity [W] | 2650 | 3600 |
| Cooling Capacity [Btu/h] | 9041.8 | 12283.2 |
| Heating Capacity [W] | 2500 | 3400 |
| Heating Capacity [Btu/h] | 8530 | 11600,8 |
| EER [W/W] | 2.79 | 3.27 |
| COP [W/W] | 3.21 | 3.58 |
| Power Supply | 220-240V/1Ph/50Hz | 220-240V/1Ph/50Hz |
| Rated Current [A] | 6.2 | 6.2 |
| Cooling Power Input [W] | 950 | 1100 |
| Heating Power Input [W] | 780 | 950 |
| Set Temperature Range [°C] | 16 - 30 | 16 - 30 |
| Air Flow Volume [m3/h] | 340/290/225 | 360/290/225 |
| Sound Pressure Level [dB(A)] | 53/49/42 | 54/49/43 |
| Dehumidifying Volume [L/h] | 1 | 1 |
| Dimension indoor unit LxWxH [mm] | 610x485x49 | 610x485x49 |
| Net weight indoor unit [kg] | 2.7 | 2.7 |

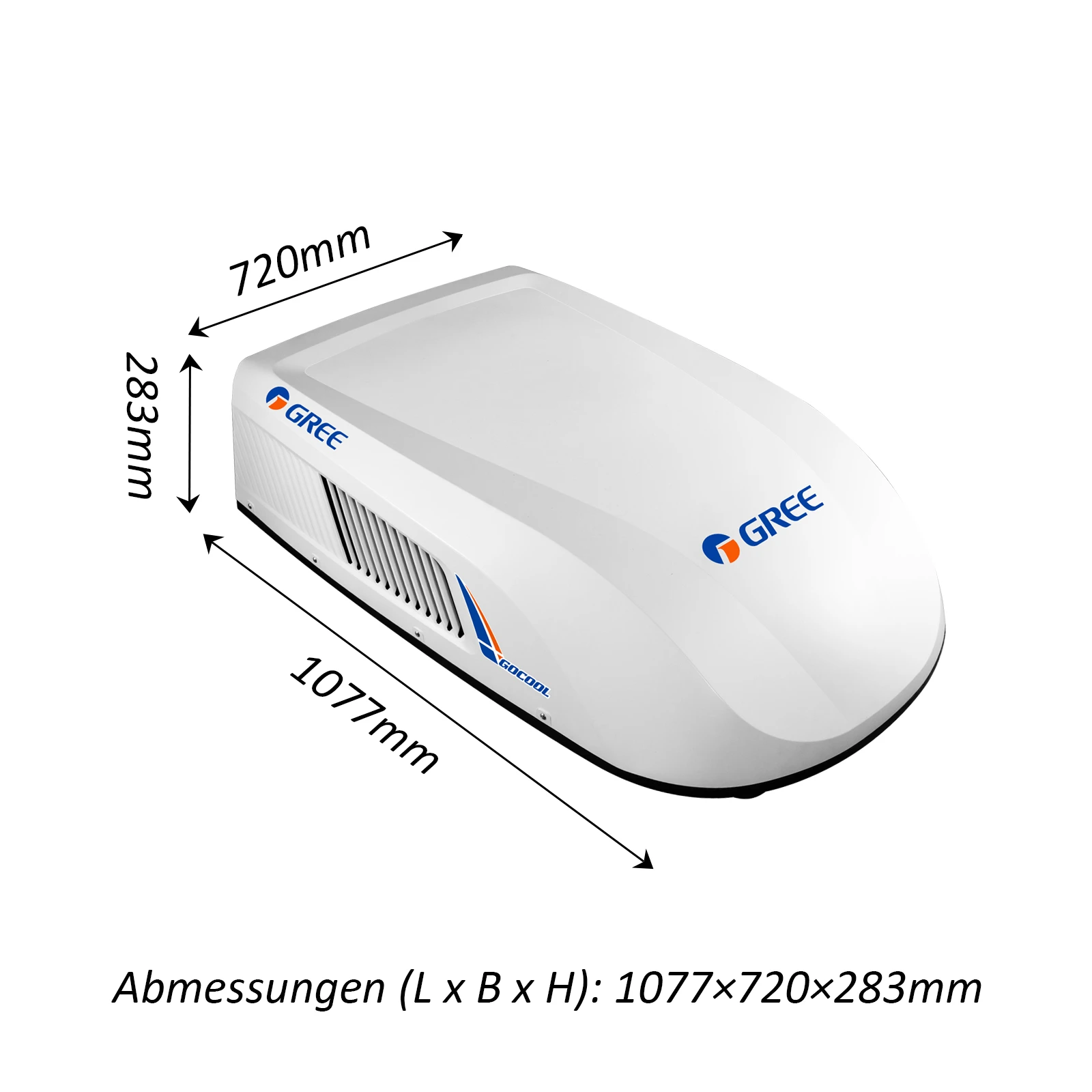

| Dimension outdoor unit LxWxH [mm] | 1077x720x283 | 1077x720x283 |
| Net weight outdoor unit [kg] | 29.5 | 29.5 |
| Refrigerant | R32 | R32 |
| Refrigerant Charge [kg] | 0.38 | 0.38 |
